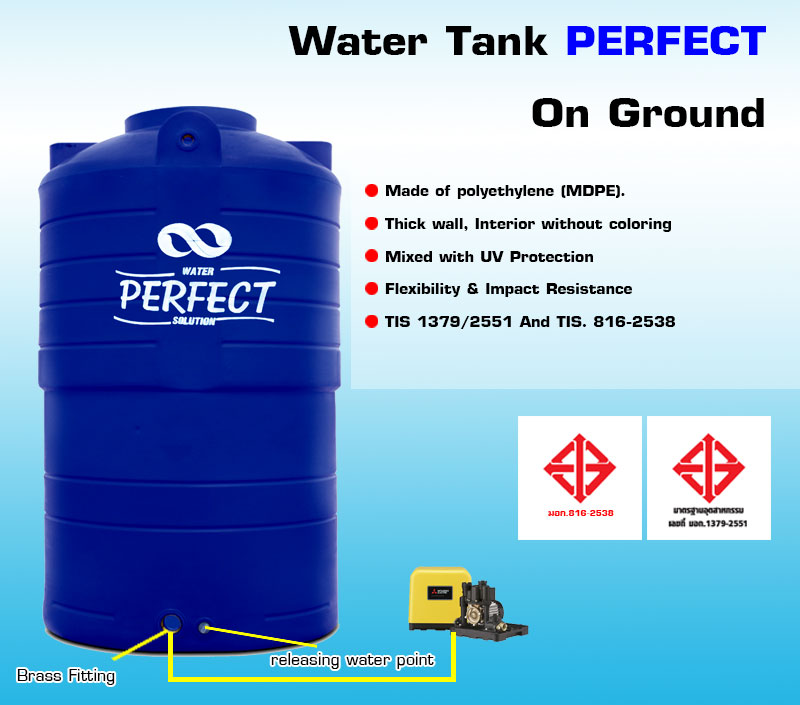

| PERFECT, On Ground Water Tank |
|
|
|
|
|
| Suggestions for installing a On Ground PERFECT Water Tank. |
1. Prepare the area for the Perfect water tank to be in a strong condition. Stable and level, can support the weight of the tank according to the instructions of the engineer. Do not place on the angle steel frame. And rough ground.
2. Lift the water tank Perfect with caution. By lifting it on the high side And positioning the water tank as specified in the plan
3. Assemble the pipe from the water supply meter into the water inlet of the Perfecct water tank and assemble the water outlet with the water pipe or connect to the automatic pump and then test the leak at the joints. By using water valve or automatic water pump switch To operate normally while closing the valve And sanitary ware at every point If it is found that the water level has decreased Or the pump works frequently Shows that the pipes inside the building are leaking. Repair the pipe again until it works well.
Caution. When connecting multiple water tanks together, you can order more joints from the factory. Do not use solids. And has a sharp impact and penetrate the tank. PVC pipe should be used CLASS 13.5.
| Model |
Tank Volume (liter) |
Width (cm.) |
Height (cm.) |
| PSW-100WT |
100 |
50 |
65 |
| PSW-200WT |
200 |
65 |
75 |
| PSW-330WT |
330 |
70 |
103 |
| PSW-500WT |
500 |
70 |
134 |
| PSW-600WT |
600 |
70 |
149 |
| PSW-750WT |
750 |
70 |
169 |
| PSW-1000WT |
1000 |
92 |
176 |
| PSW-1500WT |
1500 |
110 |
164 |
| PSW-2000WT |
2000 |
120 |
192 |
| PSW-2500WT |
2500 |
140 |
191 |
| PSW-3000WT |
3000 |
140 |
205 |
| PSW-4000WT |
4000 |
165 |
210 |
| PSW-5000WT |
5000 |
170 |
235 |
| PSW-6000WT |
6000 |
170 |
270 |
| PSW-8000WT |
8000 |
212 |
270 |
| PSW-10000WT |
10000 |
217 |
320 |
| PERFECT, Water Tank On Ground (Granite) |
| Model |
Volume (liter) |
Width (cm.) |
Height (cm.) |
| PSW-330UG |
330 |
70 |
103 |
| PSW-500UG |
500 |
70 |
134 |
| PSW-600UG |
600 |
70 |
149 |
| PSW-750UG |
750 |
70 |
169 |
| PSW-1000UG |
1000 |
92 |
176 |
| PSW-1500UG |
1500 |
110 |
164 |
| PSW-2000UG |
2000 |
120 |
192 |
| PSW-2500UG |
2500 |
140 |
191 |
| PSW-3000UG |
3000 |
140 |
205 |
| PSW-4000UG |
4000 |
165 |
210 |
| PSW-5000UG |
5000 |
170 |
235 |
| PSW-6000UG |
6000 |
170 |
270 |
| PSW-8000UG |
8000 |
212 |
270 |
| PSW-10000UG |
10000 |
217 |
320 |
|
| |
|
|
|
