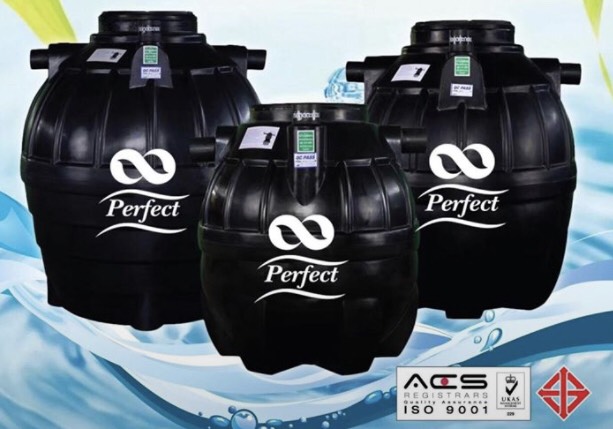

| Polyethylene septic tank |
|
|
| Anaerobic Septic Tank |
|
Perfect tanks are meticulously designed and recognized for excellent quality from various institutions. With a robust structure Made from pure polyethylene. By designing with special thickness The lid is made of ABS can be locked securely. Or cast iron to choose from, therefore have a long service life We have a sales team and service department ready to give advice on product usage and wastewater treatment system design. With fast after-sales service And effective for our customers at all times
Materials
- The body is made of special plastic MDPE TIS. 816-2538.
- RANDOM FILTER MEDIA filter, CIRCULAR No "900, made of LLDPE. The fin is DIRECT VANE. There are various specific surface areas including 102,105,120,150 m2/m3
- The lid of the tank is made of ABS lockable or cast iron (CAST IRON) placed on the parking lot.
- อุAdditional equipment, including flex joints with stainless steel webbing to prevent soil subsidence and others as specified
- Perfect tank is designed with an O-Shape using the balance of force while actually using it, including ground water pressure, soil pressure, weight falling from the top and bottom as well as the force. Pressure of the water inside the tank (Balancing Loads Concept)
| Perfect anaerobic wastewater treatment tanks. Available in 3 series. |
|
|
| 1. CF (COMPACT) - Series |
|
Is a septic tank from all activities that combines 2 steps together Which is SEPTIC and ANAEROBIC FILTER, treating waste water as standard Suitable for office buildings, schools, residences. Available in 9 models, with sizes from 2 people per set or can be modified as specified by the engineer.
| Model |
Number of Users(people) |
Volume (liter) |
Pipe Size
(mm.) |
Width
(m.) |
Height
(m.) |
Mainhole
Width
(m.) |
Inlet
deep
(m.) |
Outlet
deep
(m.) |
| House |
Office |
Total |
Filter section |
| PSW-600CF |
2-3 |
8-11 |
600 |
198 |
100(4") |
1.05 |
1.28 |
0.45 |
0.25 |
0.30 |
| PSW-800CF |
3-4 |
11-14 |
800 |
264 |
100(4") |
1.07 |
1.52 |
0.45 |
0.25 |
0.30 |
| PSW-1000CF |
3-5 |
14-18 |
1000 |
330 |
100(4") |
1.20 |
1.45 |
0.45 |
0.25 |
0.30 |
| PSW-1200CF |
4-6 |
17-22 |
1200 |
390 |
100(4") |
1.22 |
1.45 |
0.45 |
0.25 |
0.30 |
| PSW-1600CF |
5-8 |
23-29 |
1600 |
528 |
100(4") |
1.37 |
1.60 |
0.45 |
0.25 |
0.30 |
| PSW-2000CF |
6-11 |
29-36 |
2100 |
690 |
100(4") |
1.46 |
1.75 |
0.45 |
0.25 |
0.30 |
| PSW-3000CF |
10-16 |
44-56 |
3000 |
990 |
100(4") |
1.70 |
1.86 |
0.45 |
0.25 |
0.30 |
| PSW-4000CF |
13-22 |
58-73 |
4000 |
1320 |
100(4") |
2.00 |
2.00 |
0.45 |
0.25 |
0.30 |
| PSW-4500CF |
15-25 |
66-82 |
4500 |
1485 |
150(6") |
2.08 |
2.05 |
0.45 |
0.25 |
0.30 |
| PSW-5200CF |
17-28 |
77-95 |
5250 |
1716 |
150(6") |
2.09 |
2.28 |
0.45 |
0.25 |
0.30 |
| PSW-6000CF |
20-33 |
88-110 |
6000 |
1980 |
150(6") |
2.29 |
2.27 |
0.45 |
0.25 |
0.30 |
Is a waste water treatment tank from every activity, only the Septic Procedure (SEPTIC) separating waste sludge And decomposed efficiently, suitable for office buildings, schools, residences and restaurants. Use for 3 people or more or as specified by the engineer. Must be use with the FF series tank
| Model |
Number of Users(people) |
Total Volume (liter) |
Pipe Size
(mm.) |
Width
(m.) |
Height
(m.) |
Mainhole
Width
(m.) |
Inlet
deep
(m.) |
Outlet
deep
(m.) |
| House |
Office |
| PSW-600SS |
3-5 |
13-16 |
600 |
100(4") |
1.05 |
1.28 |
0.45 |
0.25 |
0.30 |
| PSW-800SS |
4-6 |
17-22 |
800 |
100(4") |
1.07 |
1.52 |
0.45 |
0.25 |
0.30 |
| PSW-1000SS |
5-8 |
22-27 |
1000 |
100(4") |
1.20 |
1.45 |
0.45 |
0.25 |
0.30 |
| PSW-1200SS |
6-10 |
26-33 |
1200 |
100(4") |
1.22 |
1.45 |
0.45 |
0.25 |
0.30 |
| PSW-1600SS |
8-13 |
35-44 |
1600 |
100(4") |
1.37 |
1.60 |
0.45 |
0.25 |
0.30 |
| PSW-2000SS |
10-17 |
44-55 |
2100 |
100(4") |
1.46 |
1.75 |
0.45 |
0.25 |
0.30 |
| PSW-3000SS |
15-25 |
66-83 |
3000 |
100(4") |
1.70 |
1.86 |
0.45 |
0.25 |
0.30 |
| PSW-4000SS |
20-33 |
88-110 |
4000 |
100(4") |
2.00 |
2.00 |
0.45 |
0.25 |
0.30 |
| PSW-4500SS |
22-37 |
100-125 |
4500 |
150(6") |
2.08 |
2.05 |
0.45 |
0.25 |
0.30 |
| PSW-5200SS |
26-43 |
115-144 |
5250 |
150(6") |
2.09 |
2.28 |
0.45 |
0.25 |
0.30 |
| PSW-6000SS |
30-50 |
133-166 |
6000 |
150(6") |
2.29 |
2.27 |
0.45 |
0.25 |
0.30 |
|
|
| 3. FF (ANAEROBIC FILTER) - Series |
|
Is a waste water treatment tank from every activity, only the ANAEROBIC FILTER process, to treat the waste water from the septic process until the wastewater is clean to the standards. Can drain into the public drain or recyclable. Suitable for office buildings, schools, residences of 3 or more per set. Or as specified by the engineer. Must be use with the SS model wastewater treatment tank.
| Model |
Number of Users(people) |
Total Volume (liter) |
Pipe Size
(mm.) |
Width
(m.) |
Height
(m.) |
Mainhole
Width
(m.) |
Inlet
deep
(m.) |
Outlet
deep
(m.) |
| House |
Office |
| PSW-600FF |
3-10 |
13-32 |
600 |
100(4") |
1.05 |
1.28 |
0.45 |
0.25 |
0.30 |
| PSW-800FF |
4-12 |
17-44 |
800 |
100(4") |
1.07 |
1.52 |
0.45 |
0.25 |
0.30 |
| PSW-1000FF |
5-16 |
22-54 |
1000 |
100(4") |
1.20 |
1.45 |
0.45 |
0.25 |
0.30 |
| PSW-1200FF |
6-20 |
26-66 |
1200 |
100(4") |
1.22 |
1.45 |
0.45 |
0.25 |
0.30 |
| PSW-1600FF |
8-26 |
35-88 |
1600 |
100(4") |
1.37 |
1.60 |
0.45 |
0.25 |
0.30 |
| PSW-2000FF |
10-34 |
44-110 |
2100 |
100(4") |
1.46 |
1.75 |
0.45 |
0.25 |
0.30 |
| PSW-3000FF |
15-50 |
66-166 |
3000 |
100(4") |
1.70 |
1.86 |
0.45 |
0.25 |
0.30 |
| PSW-4000FF |
20-66 |
88-220 |
4000 |
100(4") |
2.00 |
2.00 |
0.45 |
0.25 |
0.30 |
| PSW-4500FF |
22-74 |
100-250 |
4500 |
150(6") |
2.08 |
2.05 |
0.45 |
0.25 |
0.30 |
| PSW-5200FF |
26-86 |
115-288 |
5250 |
150(6") |
2.09 |
2.28 |
0.45 |
0.25 |
0.30 |
| PSW-6000FF |
30-100 |
133-332 |
6000 |
150(6") |
2.29 |
2.27 |
0.45 |
0.25 |
0.30 |
| Body |
|
MDPE, TIS.816-2538, O Shape Strong and durable because it uses the principle of balancing load concept during actual use which is Groundwater pressure Soil and water pressure And the weight |
| Cover |
|
ABS or Cast Iron by order. |
| Blower |
|
Perfect Blower |
| A Series |
|
There is a Contact Media Aeration Chamber and a sedimentation chamber can get more waste water |
| |
|
|
| AT Series |
|
With septic chamber, aeration chamber and Sedimentation Chamber and FLAP VALVE to increase the efficiency of treatment. |
| Perfect wastewater treatment tanks with aeration are available in 2 series |
|
|
| 1. A - Series |
|
Is an Septic Tank integrat Contact Media Aeration and Sedimentation in the same tank. Treating wastewater most efficiently And without bad smell
| Volume |
Number of users (people) |
Volume
(liter) |
Pipe Size
(mm.) |
Width
(m.) |
Height
(m.) |
Mainhole Width
(m.) |
Inlet
deep
(m.) |
Outlet
deep
(m.) |
Air blower
(Watts) |
House
Apartment
Hotel
|
Office
School
Factory |
Market
Restaurant |
| PSW-600A |
2-3 |
9-14 |
17-28 |
600 |
100(4") |
1.05 |
1.28 |
0.45 |
0.25 |
0.30 |
40 |
| PSW-800A |
2-4 |
16-19 |
22-38 |
800 |
100(4") |
1.07 |
1.52 |
0.45 |
0.25 |
0.30 |
40 |
| PSW-1000A |
3-5 |
15-23 |
28-47 |
1000 |
100(4") |
1.20 |
1.45 |
0.45 |
0.25 |
0.30 |
40 |
| PSW-1200A |
4-7 |
19-28 |
34-57 |
1200 |
100(4") |
1.22 |
1.45 |
0.45 |
0.25 |
0.30 |
40 |
| PSW-1600A |
5-9 |
23-29 |
45-76 |
1600 |
100(4") |
1.37 |
1.60 |
0.45 |
0.25 |
0.30 |
40 |
| PSW-2000A |
7-11 |
29-36 |
57-95 |
2100 |
100(4") |
1.46 |
1.75 |
0.45 |
0.25 |
0.30 |
40 |
| PSW-3000A |
10-17 |
44-56 |
85-142 |
3000 |
100(4") |
1.70 |
1.86 |
0.45 |
0.25 |
0.30 |
40 |
| PSW-4000A |
14-23 |
58-73 |
114-190 |
4000 |
100(4") |
2.00 |
2.00 |
0.45 |
0.25 |
0.30 |
60 |
| PSW-4500A |
16-26 |
66-82 |
128.214 |
4500 |
150(6") |
2.08 |
2.05 |
0.45 |
0.25 |
0.30 |
60 |
| PSW-5200A |
18-30 |
77-95 |
148-247 |
5250 |
150(6") |
2.09 |
2.28 |
0.45 |
0.25 |
0.30 |
80 |
| PSW-6000A |
21-35 |
88-110 |
171-285 |
6000 |
150(6") |
2.29 |
2.27 |
0.45 |
0.25 |
0.30 |
80 |
Is a aeration wastewater treatment tank only Contact Media Aeration and Sedimentation process, which will treat the wastewater from the SS Septic tank.
| Volume |
Number of users (people) |
Volume
(liter) |
Pipe Size
(mm.) |
Width
(m.) |
Height
(m.) |
Mainhole Width
(m.) |
Inlet
deep
(m.) |
Outlet
deep
(m.) |
Air blower
(Watts) |
House
Apartment
Hotel
|
Office
School
Factory |
Market
Restaurant |
| PSW-600AT |
5-8 |
22-33 |
17-28 |
600 |
100(4") |
1.05 |
1.28 |
0.45 |
0.30 |
0.35 |
40 |
| PSW-800AT |
6-11 |
29-44 |
53-88 |
800 |
100(4") |
1.07 |
1.52 |
0.45 |
0.30 |
0.35 |
40 |
| PSW-1000AT |
8-13 |
37-55 |
66-111 |
1000 |
100(4") |
1.20 |
1.45 |
0.45 |
0.30 |
0.35 |
40 |
| PSW-1200AT |
10-16 |
44-66 |
80-133 |
1200 |
100(4") |
1.22 |
1.45 |
0.45 |
0.30 |
0.35 |
40 |
| PSW-1600AT |
13-22 |
59-88 |
106-177 |
1600 |
100(4") |
1.37 |
1.60 |
0.45 |
0.30 |
0.35 |
40 |
| PSW-2000AT |
16-27 |
74-111 |
133-222 |
2100 |
100(4") |
1.46 |
1.75 |
0.45 |
0.30 |
0.35 |
40 |
| PSW-3000AT |
25-41 |
111-166 |
200-333 |
3000 |
100(4") |
1.70 |
1.86 |
0.45 |
0.30 |
0.35 |
40 |
| PSW-4000AT |
33-55 |
148-222 |
266-444 |
4000 |
100(4") |
2.00 |
2.00 |
0.45 |
0.30 |
0.35 |
60 |
| PSW-4500AT |
37-62 |
166-250 |
300-500 |
4500 |
150(6") |
2.08 |
2.05 |
0.45 |
0.30 |
0.35 |
80 |
| PSW-5200AT |
43-72 |
192-288 |
346-577 |
5250 |
150(6") |
2.09 |
2.28 |
0.45 |
0.30 |
0.35 |
120 |
| PSW-6000AT |
50-83 |
222-333 |
400-666 |
6000 |
150(6") |
2.29 |
2.27 |
0.45 |
0.30 |
0.35 |
120 |
|
